Audio Extractor/De-Embedder - 4K HDMI to HDMI with Dolby ATMOS
zzgl. Umsatzsteuer zzgl. Versandkosten
Nicht am Lager! Ware wird nachbestellt. Zulieferung je nach Verfügbarkeit beim Hersteller ca. 5-30 Werktage.
- Artikel-Nr.: OM-HDMIEXH
- Hersteller-Nr.: 05HMHM0002
- Versandgewicht: 1,00 kg

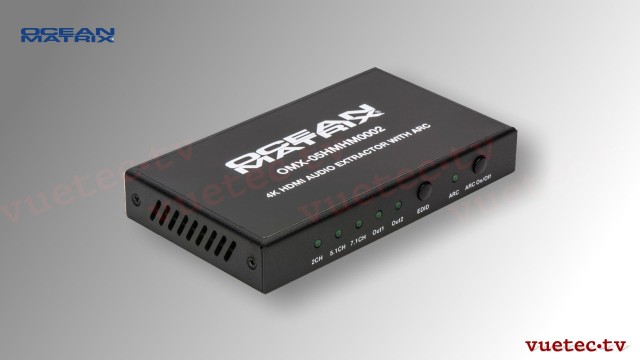

Ocean Matrix OMX-05HMHM0002 Audio Extractor/De-Embedder- 4K HDMI to Dedicated HDMI Output with ARC & EDID
If you're looking to breakout the audio signal from an HDMI signal, the Ocean Matrix OMX-05HMHM0002 HDMI audio extractor is the right tool for the job. The 05HMHM0002 extracts L/R analog RCA audio, Toslink optical and HDMI audio from any HDMI source. It includes an HDMI looping output for monitor & TV connection.
The Ocean Matrix 05HMHM0002 HDMI extractor features 10-bit HDR pass through and a smart EDID management system to preserve the original video. It supports resolutions up to 4K2K@50/60Hz. The ARC (audio return channel) function allows audio to be sent back from the receiver to the transmitter, eliminating the need for extra audio cables.
Features:
- Dedicated HDMI Out for Audio Only with 720p60 Black Screen
- Smart EDID Management - 2CH, 5.1CH, 7.1CH, OUT1, OUT2
- Multi-channel Optical (S/PDIF) and L/R Analog Audio Output on 3.5mm Stereo Mini Jack
- Audio Return Channel (ARC) Function
- Video Resolutions up to 4K2K@50/60Hz YUV4:4:4
- HDMI 10-bit HDR Pass Through
- Optical Audio Supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- Supports CEC Bypass
- LED Indicators for EDID Routing & ARC ON/OFF
- Rugged Metal Enclosure
- CE, RoHS Certified
Specifications:
- Compliance: HDMI 2.0b, HDCP 2.22 & HDCP 1.4
- Video Bandwidth: 18Gbps
- Video Resolutions: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
- Audio Sampling Rate: up to 192 kHz
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 10-bit, 12-bit
- HDMI Audio Pass-Through Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- L/R Audio Formats: Analog Stereo 2 CH

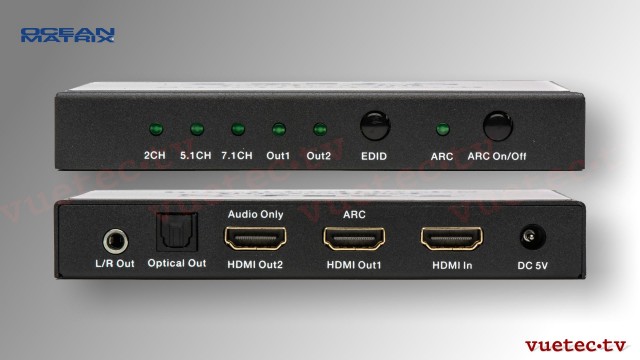

- Inputs: 1- HDMI / Outputs: 2- HDMI, 1- L/R 3.5mm Stereo Mini-Jack, 1- Optical Out S/PDIF
- Power Consumption: 2W
- Input Power: AC100-240V 50/60Hz
- Dimensions: 130 x 75 x 19 mm
- Weight: 250 g
Item Includes:
- 5V/1A Power Supply
| Technologie: | HDCP 1.4, HDCP 2.22 |
| Bauform: | Mini-Converter |
| Inputs: | HDMI |
| Outputs: | Audio analog, Audio optical, HDMI, HDMI ARC |
| Power: | 5 V DC |
| Technologie: | HDCP 1.4, HDCP 2.22 |
| Bauform: | Mini-Converter |
| Inputs: | HDMI |
| Outputs: | Audio analog, Audio optical, HDMI, HDMI ARC |
| Power: | 5 V DC |
