Audio over fiber, SES-FA2N, 2 Kanal analog Audio Line/Mic, symmetrisch
- Artikel-Nr.: SE-FA2N
- Hersteller-Nr.: SES-X-FA2
- Versandgewicht: 2,00 kg

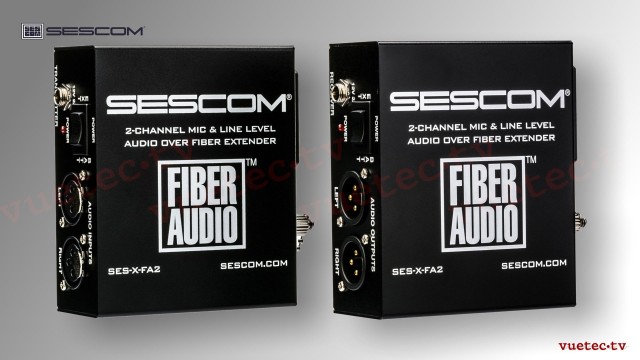

Sescom SES-X-FA2 Fiber Extender Kit / 2-Channel Mic & Line Level / Audio Over Single Fiber / Portable Battery Powered
Sescom's X-FA2 is a battery powered 2-Channel XLR line level audio over fiber optic extender system that's perfect for broadcast or corporate studios, field audio operations, OB vans, rental, theaters, stadiums and more! Sescom's new and improved X-A2 design eliminates potential crosstalk issues. The Sescom X-FA2 supports optical transmission of balanced and unbalanced 24 Bit PCM - AES3 encoded line level audio signals. Transmission of audio signals supports short and long-distance requirements through multimode or singlemode optical fiber.
9V Battery or AC Powered!
The Sescom X-FA2 can be powered externally or with a 9-volt battery making it the perfect fit in field applications.
Selectable Mic or Line Level on Each Channel

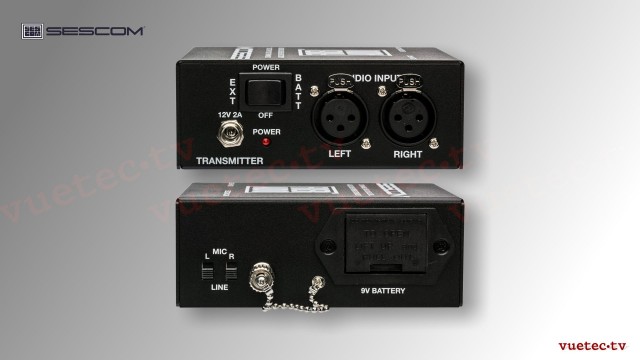

The Sescom X-FA2 provides two XLR line level inputs via XLR connectors. The receiver features an independent mic/line level switch on each channel giving you the flexibility to convert the line level audio to mic level.

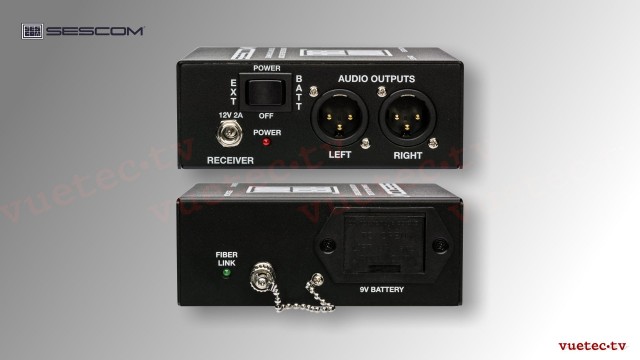

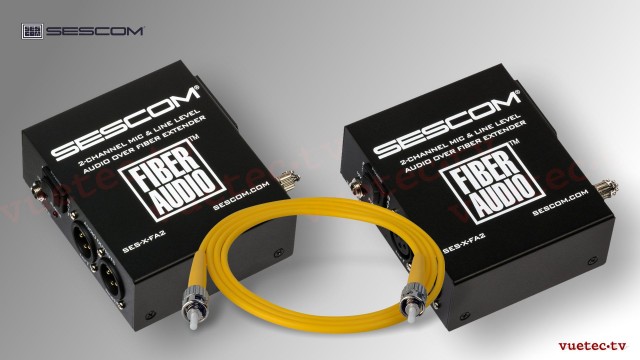

Complete transmitter & receiver system with professional ST Connectors! The X-FA2 has a range of 12.4 miles using single mode fiber and up to 984 feet over multimode fiber cable.
Please Note: The Sescom X-FA2 is designed for line level signals only and not intended for intercom use.
Features:
- 2-Channel Analog Audio to Fiber Transmission
- 24-Bit Digitally Encoded Analog Audio
- Supports Multimode Fiber up to 984 feet
- Supports Single Mode Fiber up to 12.4 miles
- Switchable Balanced Mic or Line Level
- Wide Dynamic Optical Range Requires No Optical Adjustments
- Power: AC Adapter or Standard 9VDC Battery
- Battery Runtime: Alkaline - Approx 4 hours
Specifications:
- Transmitter - 2 Balanced XLR Inputs / Receiver -2 XLR Outputs
- Simplex ST Connectors
- Bit rate: 24bit
- Sampling Rate: 48Khz
- Signal to Noise Ratio > 85dB
- Input Impedance: 10KΩ
- Mic Level: -30dB
- Line Level: 0dB in/0dB out
- Humidity Operating Range up to 20-90% RH (no condensation)
- Not for use with IFB systems where audio is modulated with voltage
- Not for use with phantom powered devices
- Dimensions Each Unit: 4.33 x 3.62 x 1.65 in / 110mm x 92mm x 42mm
- Weight Each Unit: 7.9 oz / 224 g
Item Includes:
- 2-9V batteries
- 2- 12 VDC@1.5A AC power adapters
| Bauform: | Desktop |
| Funktion: | Fiber Optic Extender |
| Kanäle: | 2 Kanal, Line Level, MIC Level |
| Übertragungsrichtung: | Uni-Directional |
| Anschluß: | XLR 3pin |
| Inputs: | Symmetrisch | Balanced |
| Outputs: | Symmetrisch | Balanced |
| Power: | 9 V Block Batterien, 12 V DC |
| Bauform: | Desktop |
| Funktion: | Fiber Optic Extender |
| Kanäle: | 2 Kanal, Line Level, MIC Level |
| Übertragungsrichtung: | Uni-Directional |
| Anschluß: | XLR 3pin |
| Inputs: | Symmetrisch | Balanced |
| Outputs: | Symmetrisch | Balanced |
| Power: | 9 V Block Batterien, 12 V DC |
Sescom ist eine Division der Tower Products Incorporated, New Jersey, USA, und spezialisiert auf die Entwicklung und Herstellung von besonderen Lösungen für die professionelle und semi-professionelle Audiotechnik.
Zum umfangreichen Programm gehören Audioadapter und -transformatoren, sowie Kleingeräte zur Übertragung oder Signalanpassung.
vuetec.tv UG importiert die SESCOM Produkte exklusiv und vertreibt sie im deutschsprachigen Raum.
