Audio over Fiber, FA4UB, 4 Kanal analog Audio, un-symmetrisch

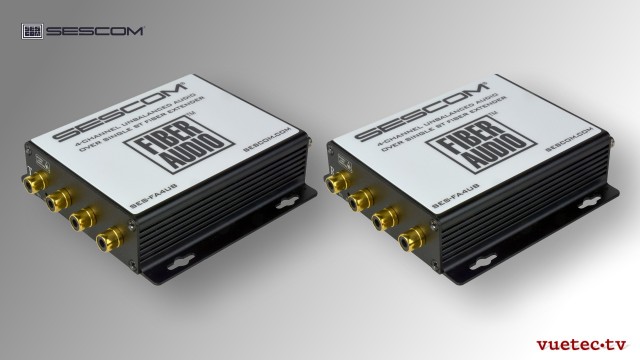

FA4UB 4-Channel Unbalanced RCA Audio Over a Single ST Fiber Extender

Send 4-Channels of line level RCA unbalanced audio over a single fiber with the Sescom SES-FA4UB. The simplest solution for sending RCA audio over long distances via multi-mode or single-mode optical fiber. The unit maintains a broadcast quality audio signal at distances up to1600 feet on multimode fiber & up to 12.5 miles on singlemode fiber.

Its plug-and-play design ensures fast, adjustment-free installation and operation. LED indicators are provided to instantly monitor the system operating status. Professional bayonet style ST connectors ensure a consistent, uninterrupted signal. The complete transmitter and receiver kit is perfect for Stadiums, Live Event Stages, Broadcast TV, Theme Parks, Distance Surveillance and Professional AV.

Features:

• Complete Transmitter/Receiver Kit with Power Supplies
• Number of Channels 4
• Gold-Plated RCA Connectors
• 24-Bit Digitally Encoded Audio
• Support Point-to-Point or Daisy-Chain connection
• Multimode Fiber Transmission up to 1600 Feet without Attenuation
• Singlemode Fiber Transmission up to 12.5 Miles without Attenuation
• No EMI, RFI, Cross Talk or Video Distortion and no Ground Loops
• LED Indicators for Instant System Monitoring
• Standalone Chassis with Surface Mounting Bracket

Specifications:

• Input Power 5VDC@2A
• Power Adapter 90-240VAC
• Power Consumption < 3W
• Line Leverl Audio
• Optic fiber 50/125Μ multimode, 62.5/125Μ multimode, 9/125Μ singlemode
• Input Impedance: 10K Ω
• Output Impedance: 50 Ω
• Max input/output voltage 3.0Vp-p
• Frequency Response 10 Hz-29kHz @±3dB
• SNR > 70dB
• Unit Dimensions: 104x 104 x 28mm
• Shipping Weight (Transmitter & Receiver) 0.8kg

Item Includes:

•     1 Transmitter with power supply, 5VDC
•     1 Receiver with power supply, 5VDC
