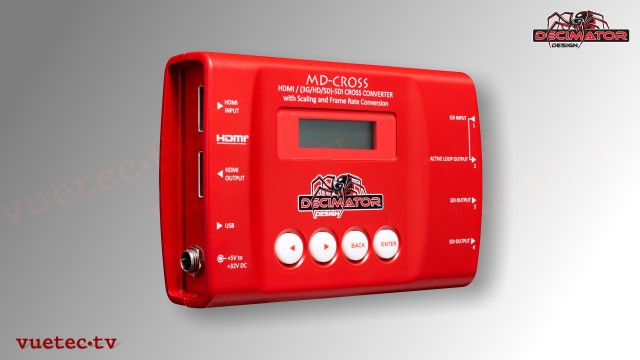

Decimator MD-CROSS Up-/DownConverter
440,00 € *1
zzgl. Umsatzsteuer zzgl. Versandkosten
Nicht am Lager! Ware wird nachbestellt. Zulieferung je nach Verfügbarkeit beim Hersteller ca. 5-30 Werktage.
- Artikel-Nr.: DD-MDCROSS
- Hersteller-Nr.: MD-CROSS
- Versandgewicht: 1,00 kg
Decimator Design - MD-CROSS V2
HDMI / SDI CROSS CONVERTER with Scaling, Frame Rate Conversion,... mehr
Decimator Design - MD-CROSS V2
HDMI / SDI CROSS CONVERTER with Scaling, Frame Rate Conversion, Overlays, Video Test Pattern Generator and Audio Tone Generator
-
Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
-
Horizontal and/or Vertical image flipping via the built in scaler.
-
4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
-
Horizontal and/or Vertical image flipping via the built in scaler.
-
Features the following 14 modes:
-
SDI IN to HDMI and SDI OUT
-
SDI IN to SDI OUT and HDMI IN to HDMI OUT
-
SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
-
SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
-
HDMI IN to SDI OUT and SDI IN to HDMI OUT
-
HDMI IN to HDMI and SDI OUT
-
HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
-
HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
-
Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
-
Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
-
Scaled SDI IN to HDMI and SDI OUT
-
Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
-
Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
-
Scaled HDMI IN to HDMI and SDI OUT
-
Professional 3G/HD/SD Test Pattern Generator featuring:
-
26 Selectable Output Formats
-
54 Test Patterns including Luma and Chroma Zone-plates
-
Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
-
The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.
-
This unit also includes:
-
(3G/HD/SD)-SDI Active Loop-Through Output
-
Full 16-Channel Audio Metering Overlays
-
Adjustable Safe Title and Safe Action Overlays and static Center Cross
-
Text Overlays
-
USB port for control and firmware updates
-
New Metal Thread Locking DC Power Socket
-
Power Supply, HDMI Cable and USB Cable
| Funktion: | HDMI zu SDI, SDI zu HDMI, Verteiler 1x4 |
| Bauform: | Mini-Converter |
| Inputs: | HDMI, SDI |
| Outputs: | HDMI, SDI |
| Anschluß: | BNC 75 Ohms, HDMI-A |
| Power: | 5 ~ 32 V DC |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD |
Weiterführende Links zu "Decimator MD-CROSS Up-/DownConverter"
Technical Specification VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s •...
Technische Daten
Technical Specification
| VIDEO FORMATS | 3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s • 1080i@60/59.94/50Hz • 1080p/psf@30/29.97/25/24/23.98Hz • 720p@60/59.94/50/30/29.97/25/24/23.98Hz SD:SMPTE 259M@270Mb/s • 625i50 • 525i59.94 |
| INPUTS | • HDMI • (3G/HD/SD)-SDI 10-bit • Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A |
| OUTPUTS | • HDMI • 1 x (3G/HD/SD)-SDI Active Loop-Through • 2 x (3G/HD/SD)-SDI 10-bit Outputs |
| LCD / BUTTON MENU OPTIONS | • SDI output source from HDMI IN, SDI IN, TPG or Scaler • HDMI output type and source from HDMI IN, SDI IN, TPG or Scaler • Scaler source, format and Aspect Controls • Full control for Audio Meter Overlays • Full control for Safe Action, Safe Title and Centre Cross Overlays • Full control for Text Overlays • Full control for Format Status Overlays |
| POWER | • +5V to +32V DC, ~5 Watts • Positive Centre Pin |
| DIMENSIONS | 79.5mm x 123mm x 29.5mm |
Eigenschaften: "Decimator MD-CROSS Up-/DownConverter"
| Funktion: | HDMI zu SDI, SDI zu HDMI, Verteiler 1x4 |
| Bauform: | Mini-Converter |
| Inputs: | HDMI, SDI |
| Outputs: | HDMI, SDI |
| Anschluß: | BNC 75 Ohms, HDMI-A |
| Power: | 5 ~ 32 V DC |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD |
Decimator Design PYT LTD mit Basis Australien ist ein seit Jahren im Broadcast Markt bekannter Entwickler und Hersteller von kostengünstigen und leistungsstarken Signalwandlern. Cross-, Up- und Down-Konversion aber auch MultiView Processing sind die Key-Technologien der Australier.
