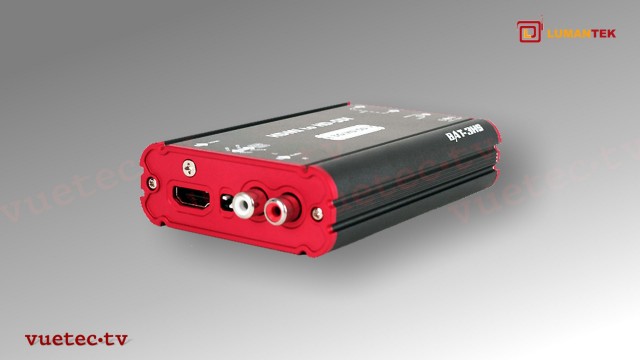

BAT-3SH - 3G/HD/SD-SDI zu HDMI High Performance Mini-Converter
- Artikel-Nr.: LM-BAT3SH
- Hersteller-Nr.: BAT3-SH
- Versandgewicht: 1,00 kg
3G/HD/SD-SDI to HDMI High Performance Mini-Converter - LowHeat
The BAT-series from LUMATEK is a versatile and feature-packed solution for your project and budget requirements.
The World coolest MiniConverter
Our innovative BAT-series line of MiniConverters have less 3W power consumption. They are the coolest converters at the market.
Wide Range Input Power
Todays professinal HD cameras have very various power outputs, and the BAT-series MiniConveter can be supported from any 7V to 18V power source.
Audio Sampling Rate Conversion
BAT-series MiniConverters offers Audio sampling rate conversions ( 16-192 KHz to 48 KHz )
Long Signal Strength
BAT-series MiniConverters offers superior signal quality with lowest SDI jitter possible, so long SDI cable lengths aren't be a problem.
Key Features
- Auto detection mode (3G/HD/SD)
- Re-clocked loop-through 3G/HD/SD-SDI output [BNC 75 ohm]
- HDMI v1.3 compliant
- HDCP compliant
- Supports 8 audio channels (4 stereo pairs) - 48kHz sample rate
- Additional analog stereo audio output
- Selectable luminance range (0~255/16~235) by DIP switch
- Selectable format RGB 4:4:4 or YUV 4:2:2
- Selectable HD/SD color space conversion by DIP switch
- Heavy-duty full metal housing, anodized aluminum
| Funktion: | De-/Embedder, SDI zu HDMI |
| Bauform: | Mini-Converter |
| Inputs: | SDI |
| Outputs: | Audio analog, HDMI, SDI |
| Anschluß: | BNC 75 Ohms, HDMI-A, RCA Cinch |
| Power: | 12 V DC |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD |
Technical Specification
| Supported Video Formats | 720(1440) x 480i @ 59.94/60 720(1440) x 576i @ 50 1280 x 720p @ 50, 1280 x 720p @ 59.94/60 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30 1920 x 1080p @ 50, 1920 x 1080p @ 59.94/60 |
| Video Inputs | 3G/HD/SD-SDI (auto-selected), 1x BNC input, 1x BNC loop-through output SMPTE-259/272/274/292/296/299/424/425 |
| Video Outputs | HDMI v1.3a, 24/30/36 bits per pixel, RGB, 2.25Gbs, SD, HD, 1080p50/60 1x HDMI Standard Type A connector |
| Audio Outputs | HDMI embedded audio, 24 bit, 2 or 8 channels stereo RCA-style analog outputs at -10dBV |
| Input Power Range | 7V ~ 18V DC |
| Power Consumption | 3 W max. |
| Power Adapter | 100V ~ 240V, 50/60Hz, +12V DC, 2.0 A |
| Dimensions | 116 x 75 x 32 mm |
| Weight | 380 g |
| Warranty | 3 Years limited manufactures warranty |
| Funktion: | De-/Embedder, SDI zu HDMI |
| Bauform: | Mini-Converter |
| Inputs: | SDI |
| Outputs: | Audio analog, HDMI, SDI |
| Anschluß: | BNC 75 Ohms, HDMI-A, RCA Cinch |
| Power: | 12 V DC |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD |
Die Lumantek Co., Ltd aus Südkorea ist ein Spezialist für hochwertige Meßtechnik im Bereich Broadcast sowie Elektronik für die Videoproduktion. MiniConverter und benutzerfreundliche kleine AV Produktionsmischer gehören zu den Schlüsseltechnologien.
vuetec.tv UG engagiert sich als Importeur und Vertrieb für diese Produkte im deutschsprachigen Raum.
