Timecode Buddy WiFi Master
zzgl. Umsatzsteuer zzgl. Versandkosten
lagernd. Lieferzeit je nach Versandart 1-3 Werktage
- Artikel-Nr.: TS-WIFIMASER
- Hersteller-Nr.: WiFi Master
- Versandgewicht: 1,00 kg
Timecode Systems - Timecode Buddy: WiFi Master
The Timecode Buddy: WiFi Master is the core product of the Timecode Buddy: System and offers four key functions:
1. A world-class accurate timecode generator. At the heart of the Timecode Buddy: wifi master we installed a temperature controlled crystal that's pre-tuned to super accuracy 'out of the box'. There's no need to take extra time tuning each device before every use.
2. A multi-channel transceiver. We installed a robust multi-channel digital transceiver to sync timecode between the Timecode Buddy family. Timecode is transmit and synced between all master and slave units on a shoot seamlessly over one of the 14 licence free ISM BAND RF channels.
3. WiFi connectivity. Empowered with simultaneous WiFi connectivity, stream sample accurate timecode over WiFi to up to 10 iPhones or iPads. This gives everyone from timecode loggers, camera assistants to script supervisors and directors access to the same perfectly synced timecode.
4. A workflow solution. Use the Timecode Buddy: wifi master with MovieSlate to unlock a comprehensive timecode and metadata logging tool that allows you to email your editor with the appropriate file to import directly into the timeline of the edit.
Timecode Buddy: WiFi Master Features:
- Blue backlit display screen shows set up mode, timecode, user bits, frames per second (FPS) and TX/RX channel number.
- Simple programming from an onscreen menu using a one finger navigation system. No confusing DIP switches to worry about.
- Pre-programmed with 14 licence free channels in the ISM Band, for robust timecode syncing between TCB devices.
- Provides GENLOCK TV SYNC in 'standard' level output and 'high' level output to feed two cameras in a 3D camera rig, including HD formats.
- Adjust and fix all settings simply 'on set' from your iPhone or iPad and access product manuals from any web browser using the Timecode Buddy: webview.
- Transform an iPad into a digislate with the Timecode Buddy: app and unlock the advanced logging features of the latest Movie★Slate app.
- Powered by two AA batteries or an external 9-24v DC supply.
- Separate dual buffered timecode outputs to feed two cameras in a 3D camera rig.

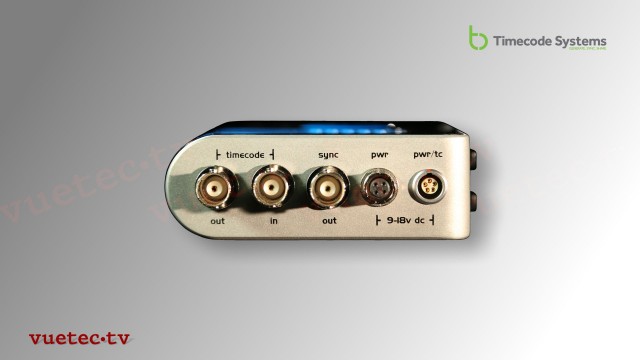

- Timecode in and outs via BNC sockets or a standard wired Lemo five pin connector.
- Set up your Timecode Buddy: wifi master to generate its own mobile 'timecode wifi network' wherever you are, or it can join an existing infrastructure network on set to expand the range of the 'timecode wifi network' across a whole set or sound stage for everybody to share.
- Update your Timecode Buddy: wifi master firmware online.
Hinweis: Dieser Artikel ist nur in geringer Stückzahl im Abverkauf erhältlich
| Funktion: | Timecode Generator + Transceiver |
| Bauform: | Mini Converter |
| Antennen: | 1x extern |
| Inputs: | Daten, Video Sync (BB) |
| Outputs: | Timecode |
| Power: | 9 ~ 36 V DC |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz |
| Steuerung: | lokal |
Technical Specs:
| Timecode generator accuracy: | 0.2 ppm TCXO reference oscillator (less than one half frame drift a day) |
| External Power: | 9-24V DC via a 4 pin Hirose connector , five pin LEMO (pin 4 pos, pin 1 gnd) |
| Internal Power: | 2 x ‘AA’ batteries |
| T/C input: | BNC connector or five pin LEMO (pin 2 sig, pin 1 gnd). 0.1 to 5V pp |
| Multi-channel digital transceiver | in 865.050-868.550 MHz (CE Approved) and 915.050-918.650 MHz (FCC/IC Approved) |
| Dual Buffered T/C output: | BNC connector and five pin LEMO (pin 5 sig, pin 1 gnd). 1V pp |
| Supported FPS modes: | 23.98, 24, 25, 29.97, 30, 29.97DF, 30DF |
| Output sync modes: | PAL, NTSC, 720p, 720p double frame, 1080i, 1080p, 1080i double frame, 1080p double frame |
| Output Video Sync: | 1V pp / 75 ohm |
| LCD display: | two line, 16 character, blue variable brightness backlit display |
| Antenna ‘halo’ lightpipe : | tri-colour LED (Blue/Green/Red) |
| Wi-Fi: |
Accurate WiFi streaming of SMPTE timecode data to native iOS app |
| External dimensions: | 29.8 x 87 x 110 mm |
| Built-in webpages: | for Buddy Web View feature:
|
| Funktion: | Timecode Generator + Transceiver |
| Bauform: | Mini Converter |
| Antennen: | 1x extern |
| Inputs: | Daten, Video Sync (BB) |
| Outputs: | Timecode |
| Power: | 9 ~ 36 V DC |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz |
| Steuerung: | lokal |
Timecode Systems ist ein britscher Hersteller von Geräten und Systemen zur synchronen Verkopplung von verschiedenen Audio-, Video- und Datengeräten für die Bereiche Broadcast, Produktion, Film, Live-Performance und mehr durch standardisierten Timecode. Er ist spezialisiert auf das Design und die Herstellung von praxisorientierten Produkten, unter Verwendung modernster Technologie mit höchster Zuverlässigkeit. Zu den Highlights gehören drahtlose Generatoren und Synchronizer.
vuetec.tv UG fungiert als exklusiver Vertrieb für den deutschsprachigen Raum.
