ez-Caster EN8 8-Channel H.264 Video-IP Encoder
- Artikel-Nr.: LM-EZCEN8
- Hersteller-Nr.: ez-CASTER EN8
- Versandgewicht: 5,00 kg
Lumantek EZ-CASTER EN8
The ez-Caster EN8 8-Channel H.264 Video-IP Encoder from Lumantek consists of 8 HDMI inputs and one IP output. It supports H.264 video compression and MPEG-1 Layer2, MPEG-2-AAC, MPEG-4-AAC for audio compression. It connects to a maximum of 8 satellite or cable STB for HD video signal and then distributes it over an IP based network, such as LAN and Intranet. Furthermore, the encoder turns an HDMI video stream into a network video system and enables users to view live images and HD video using a video management software on any local IP STB or remote computer on a network.
Features
- H.264 real-time hardware encoding
- Up to 1080p resolution, 8 x HDMI inputs
- 1 RU
- Stereo audio encoding (MPEG1, Layer 2, MPEG2-AAC, MPEG4-AAC)
- Multicast/Unicast (UDP IP stream) 1080p, 1080i, 720p, 480i output resolution setting
- 8-channel TS over IP (SPTS)
- Resolution auto detective (auto locking)
- NMS support (LAN: RJ45, USB 2.0) SW UI support
- GOP size transform
- GUI included for remote controlling
| Bauform: | 19" Einbau 1 RU |
| Funktion: | 8 Inputs zu 1 TS, TS over IP Encoder |
| Codec: | H.264 |
| Datenrate: | 4 to 16 Mbit/s |
| Inputs: | HDMI |
| Anschluß: | HDMI-A |
| Power: | 100~240 V AC 50/60 Hz |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD |
Technical Specification
| Supported Video Formats | 1920 x 1080 @ 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p 1280 x 720 @ 60p/59.94p/50p 720 x 480 @ 60i/59.94i (NTSC) 720 x 576 @ 50i (PAL) |

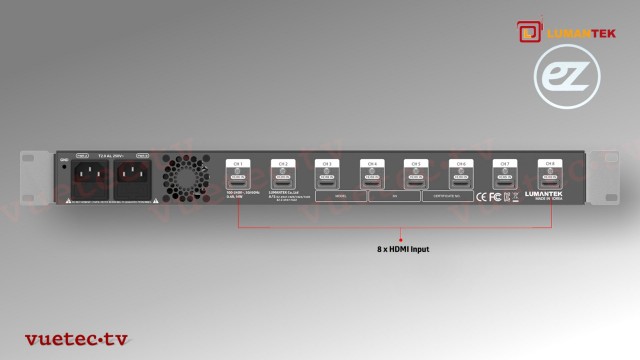

| Video Inputs | 8 x HDMI input 1 x TS over IP output |
| Data I/Os | Ethernet 1000Base-T @ RJ45 Streaming Protocol: MPEG2-TS/UDP Transport Protocol: UDP, Unicast or Multicast |
| Video Encoder | Automatic resolution detection Support for resolution conversion Video Bit-Rate: 3.5 to 18 Mb/s TS ID, PMT/PCR/VIDEO/AUDIO PID modifiable Profile: HD (HP @ L4) / SD (HP @ L3) Advanced settings (option) Support GOP structure setting Normal mode/Low latency mode configuration CPB Delay (300 ms / 500 ms / 1000 ms) configuration |
| Audio Encoder | MPEG1 Layer II Stereo Encoder Output Bit-Rate: 64/96/112/128/160/192/224/256/320/384 kb/s Encoding Sample Rates: 48 kHz MPEG2 AAC, MPEG4 AAC Output Bit-Rate: 48 to 512 kb/s Audio Sample Rate: 48 kHz |
| System | Normal Mode: 150 ms + (300 ms / 500 ms / 1000 ms) Low Latency Mode: 120 ms TS Bit-Rate: 4 to 20 Mb/s |
| Management | Windows Application (NMS) Ethernet 10Base-T/100Base-TX Support USB 2.0 |
| Power | 100V ~ 240V, 50/60Hz, +12V DC, 2.0 A |
| Power Consumption | 30 W max. |
| Operating Temperature | 0 to 45°C |

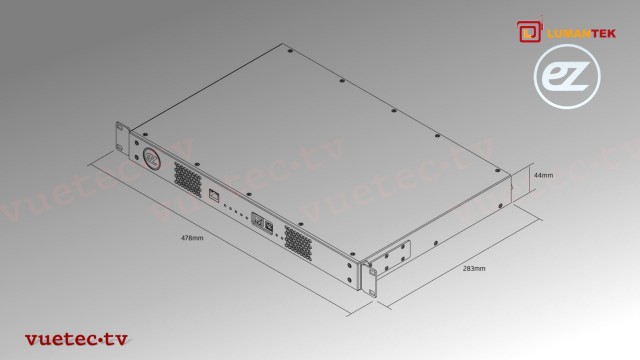

| Dimensions | 420 x 290 x 45 mm |
| Weight | 2.1 kg |
| Warranty | 3 Years limited manufactures warranty |
| Bauform: | 19" Einbau 1 RU |
| Funktion: | 8 Inputs zu 1 TS, TS over IP Encoder |
| Codec: | H.264 |
| Datenrate: | 4 to 16 Mbit/s |
| Inputs: | HDMI |
| Anschluß: | HDMI-A |
| Power: | 100~240 V AC 50/60 Hz |
| Standards: | 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD |
