OMX-HDMI-HDB1X4 1x4 HDMI Extender Splitter Set - 1080p60 Over CAT5/5e/6

Ocean Matrix OMX-HDMI-HDB1X4 1x4 HDMI Extender Splitter Set - 1080p60 Over CAT5/5e/6

The Ocean Matrix OMX-HDMI-HDB1X4 splitter extender system over a single Cat5/Cat5e/Cat6 distributes 1 HDMI source to 4 HDMI displays simultaneously.

This system extends high definition audio/video transmission beyond the standard distances for HDMI cable limitations via HDbitT technology. The OMX-HDMI-HDB1X4 delivers full 1080P HDMI signal up to 394 feet over a single Cat6 network cable. An IR signal transmission allows for remote control of the source at a secondary location with IR extension cables (included).

Ideal for projection screens, remote conferencing, CCTV, high-end security, and remote HD monitoring.

Features:

• Splits a single HDMI input signal into 4 HDMI output signals identical to the input
• Extends HDMI signals up to 80m (CAT5) 100m (CAT5e) and 120m (CAT6)
• Supports full HD resolutions up to 1080p@60Hz
• Plug and play
• Rugged metal mountable housing
• Lightning, surge, and ESD protected

Specifications:

• Inputs: 1 x HDMI
• Outputs: 4 x RJ45
• HDMI Version: HDMI1.3 Compatible with HDCP1.4
• Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz
• Transmission Distance: 1080p 60Hz up to 120m with full HD over a single CAT6 cable
• IR Signal: Supports 20-60kHz IR device
• Operating Temperature: 32°F - 140°F (0°C - 60°C)
• Power Supply: DC12V/3A
• Power Consumption: < 20W
• Dimensions (LxWxH): TX: 11.75 x 4.33 x 1.17in RX: 3.70 x 3.80 x 0.93in
• Weight: TX: 1.75lbs RX: 0.30lbs

Item Includes:

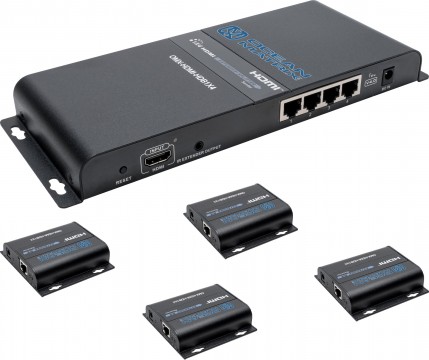

• 1 x OMX-HDMI-HDB1X8 Extender Set (1 x Extender 4 x Receivers)
• 1 x DC12/3A Adapter
• 4 x DC5/1A Adapter
• 1 x IR Blaster Extension Cable
• 4 x IR Receiver Extension Cable
